1��LED����(sh��)
| ���bSMD2121 | �ɫ | Ʒ�� | ���� | ���L | ��(sh��)�� |
 |
R | ��Ԫ | 34-46mcd | 620-625nm | 1�w |
| G | ��Ԫ | 100-125mcd | 515-520nm | ||
| B | ��Ԫ | 28-35mcd | 465-470nm |
2�����w���g����(sh��)��

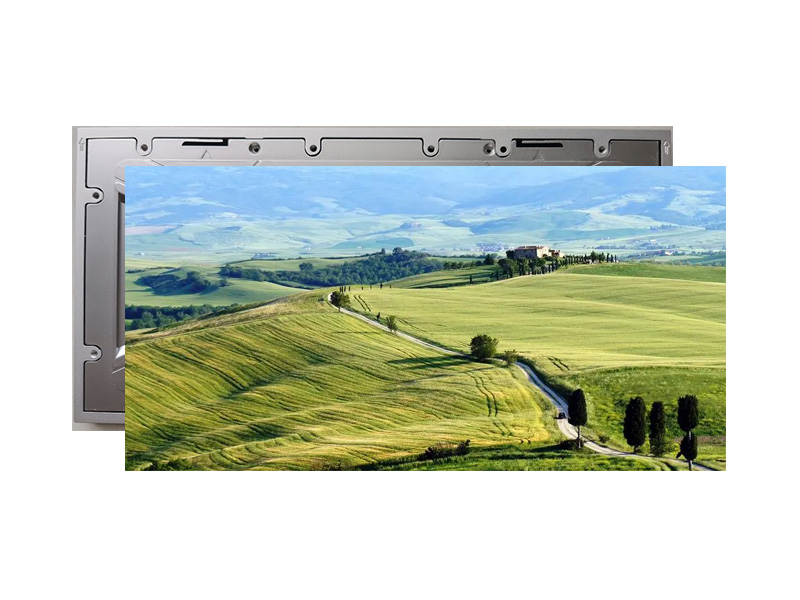

| ģ�M����(sh��) Unit Module |
�Ŀ Item | ����(sh��) Parameter |
| �a(ch��n)Ʒ��̖ Model Number | P2.5-64S | |
| ģ�M�ߴ� Module size | 320mm*160mm | |
| �����c�g�� Pixel pitch | 2.5mm | |
| �����ܶ� Pixels Density | 160000dots/m2 | |
| �����m�^�����x Minimum comfortable viewing distance |
2.5m | |
| �l(f��)���c�ɫ Pixel configuration | 1R1G1B | |
| LED���b Package mode | SMD2121 | |
| ģ�M�քe�� Pixel resolution | 128dots(W)*64dots(H) | |
| ���� Brightness | ≥400cd/m2 | |
| ģ�M��� Module Max Power | 16.5W | |
| ����� Max Power | 320W/m2 | |
| ƽ������ Average Power | 120-200W/m2 | |
| ˢ���l�� Refresh frequency | ≥3840Hz | |
| ҕ�� Viewing Angle | 140°(W),120°(H) | |
| ģ�M��� Module thickness | 10mm | |
| ģ�M���� Weight | 0.5kg | |
| �(q��)�ӷ�ʽ Drive type | ���_��245+�й�LS9737-1+PWM�����(q��)�� | |
| ���跽ʽ Scan mode | 1/64���� 1/64scan | |
| �ӿڷ�ʽ Port type | HUB75E | |
| ƥ��ϵ�y(t��ng)�� Matching system card | �`���������R�����Z�����Ҷ����Pҕ�_�� | |
| ƽ���o���Ϲ����r�L MTBF | >9000hours |
����
